Cam lock with cylinder designed to fit up to 26 mm thick wooden furniture

• Material: Zinc Alloy
• Finish: Nickel
• Diameter: 19mm
• Cylinder length: 26mm
• 505-26 is suitable for 26mm thickness or less of wooden board
• Packing/ Weight: 250 pcs/carton; 18.4 KG

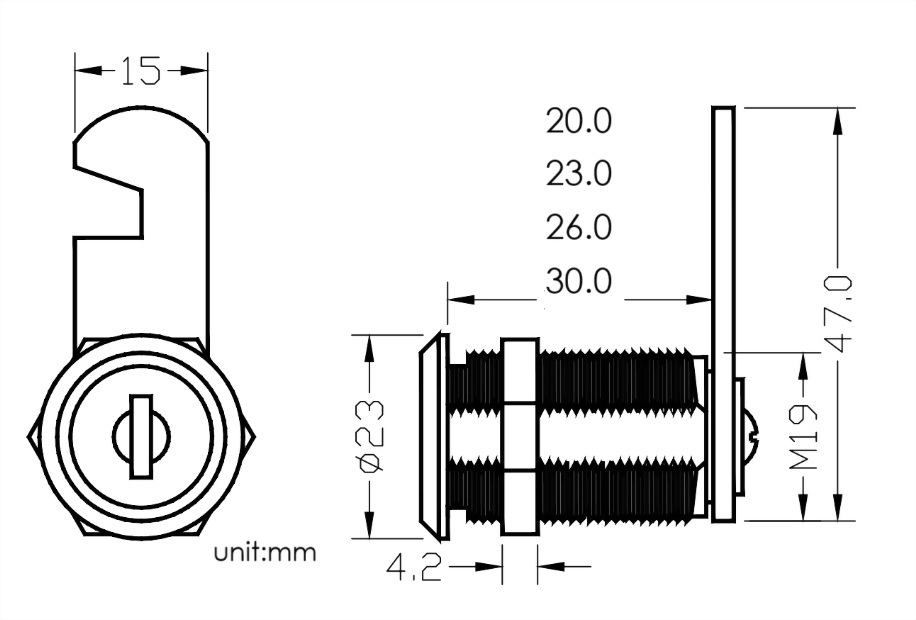

Available dimensions:

• Cylinder Size: Ø19 mm × 1
• Material: Zinc Alloy
• Accessories Included
• 2 Keys
• 1 Fix Washer (A0065)
• 1 Hexagon Nut 19 mm (A0064)
• 1 M4 × 8 mm Screw (A0081-M4x8 mm)
• 1 Hook Cam (A0047 - 47 mm)

• Robust build: Concealed fixings, solid body for regular use
• Cylinder Length: 26 mm; suited for ≤ 26 mm board thickness and more available

• Wooden furniture such as cabinets, lockers, and display cases
• Drawer or cabinet security in offices, retail, or residential settings
• Replacement lock for urniture panels
• Bulk hardware supply for furniture manufacturing
