Hydraulic 3D Concealed Door Hinge

3D Concealed Door Hinge
Hydraulic adjustable hinge
Concealed Door Hinge for Wooden Doors
Armstrong 3D Door Hinges
Hidden Door Hinges

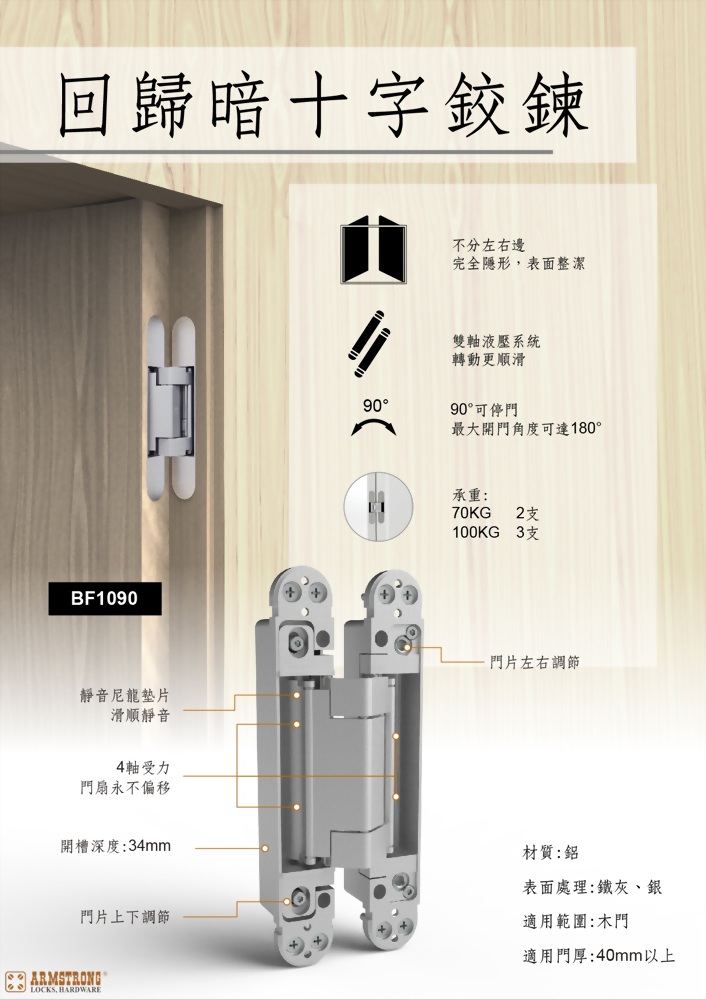

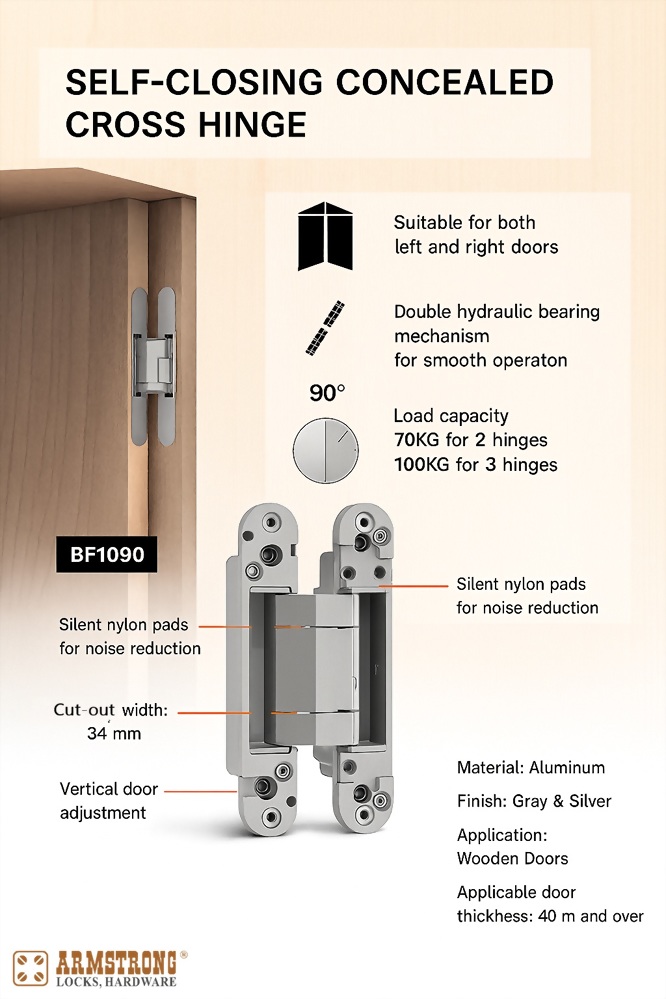

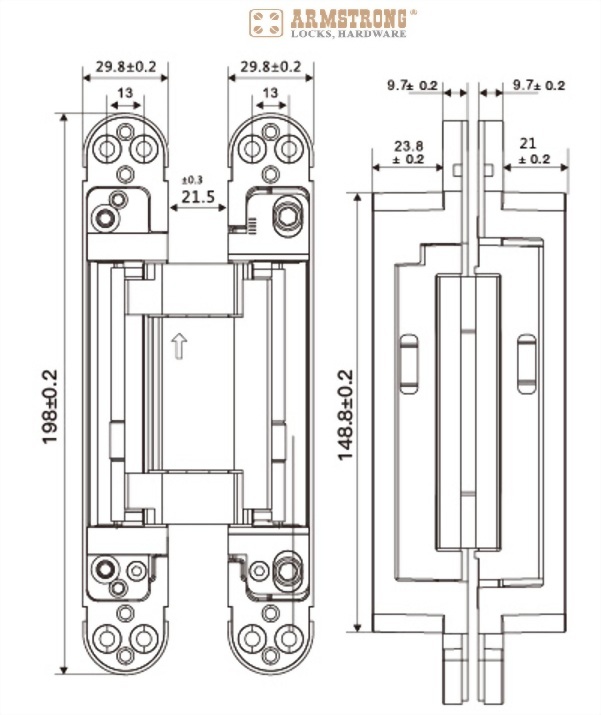

Model : BF1090AL

Q'ty :

Item No.: BF1090AL-C

Finish: Placer Silver, Gunmet Gray
Material: Aluminum
Door Thickness: 40-60mm
Max Loading Weight: 70kg/pair
Quantity of Hinges & Door Weight:
- 2 hinges ≤ 70kg
- 3 hinges ≤ 100kg
Door Size:
- 2 hinges → ≤2200(H) x ≤900(W) mm
- 3 hinges → ≤2800(H) x ≤1100(W) mm

Application: Room door, invisible door, hidden door, office door, etc...
It is also suitable with SDDS-SSS001A-1 or SDDS-SSS001A-FELICA

Model : BF1070AL

Model : BF1080AL
