Slam Lock (Spring Rim Lock) 502 Series
Slam lock for furniture
Spring rim lock
Furniture slam lock
Rim slam lock for drawers
Spring rim lock
Furniture slam lock
Rim slam lock for drawers
Model :
502
- Finish: Nickel, Brass, Black, Golden
- China patent No.:ZL95 3 10800.7
- Cylinder length available: 22mm, 26mm, 30mm
- 502-22 for 22mm cylinder length
- 502-26 for 26mm cylinder length
- 502-30 for 30mm cylinder length
- Packing
- 502-22:200 pcs/carton
- 502-26:160 pcs/carton
- 502-30:160 pcs/carton
- Weight
- 502-22: 24.6 kg
- 502-26: 25.2 kg
- 502-30: 25.5 kg
- To lock the door in 2 ways
- Push drawer to lock without key; or
- Turn key to release the spring bolt and close the door to lock with key. This supports the situation if you would like to open and reopen several times, but do not want to lock the drawer yet.
- Cylinder length available: 22mm, 26mm, 30mm
- 502-22 for 22mm cylinder length
- 502-26 for 26mm cylinder length
- 502-30 for 30mm cylinder length
- Locking Type: Push-to-lock, spring-loaded rim mechanism
- Material: Durable metal construction for

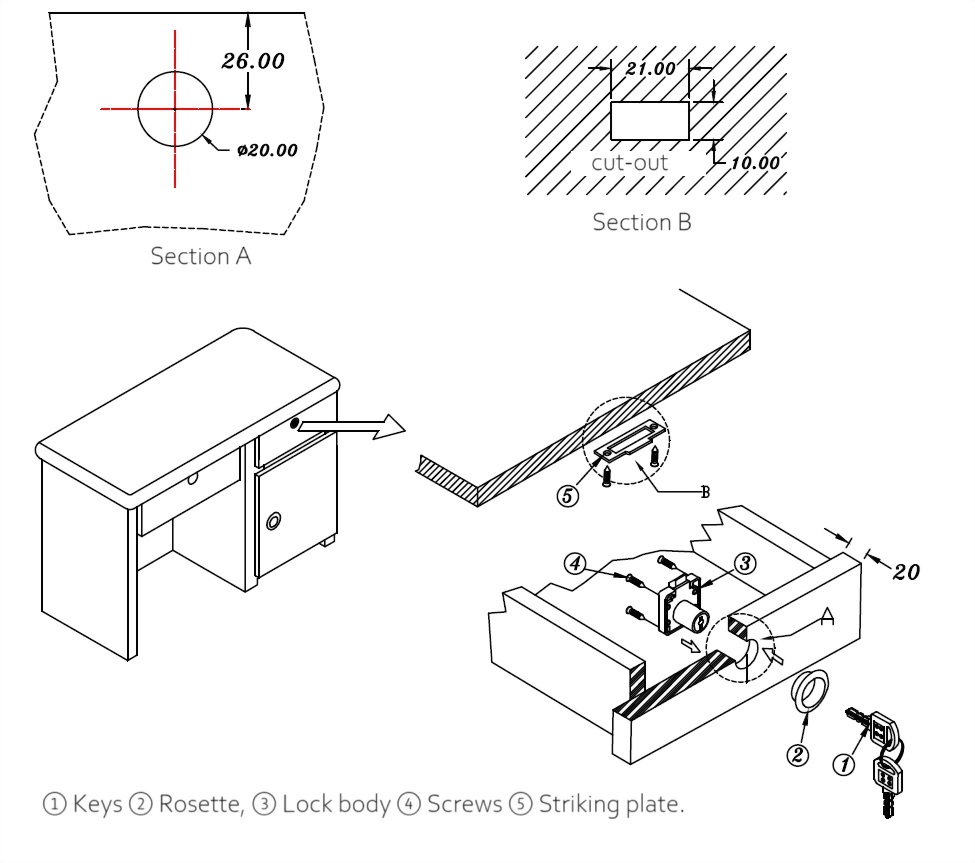

- Mounting: Surface-mounted, easy installation
- Use Case: Perfect for wooden furniture and cabinets
- Wooden cabinets or lockers in offices
- Retail furniture drawers or sliding compartments
- Institutional storage requiring fast access with key security
- Workshop or garage tool cabinets
- Mailboxes, enclosures, or utility doors with slam-shut needs
