Triple sliding door lock
Wardrobe sliding door lock
Armstrong Locks triple sliding lock
Wardrobe lock for 18-20 mm doors
Triple Sliding Door Lock (Model 709A) is for triple-panel sliding wardrobe doors with thicknesses of 18–20 mm with a 19 mm cylinder. It comes with the lock body, two 600 mm aluminum mounting profiles, and saddles for both sides—to fit cabinet interiors from 358 mm to 558 mm.
The unique design of triple sliding door lock for wardrobe
- For thickness: 18~20mm
- Cylinder: 19mm
- Material: Zinc alloy
|

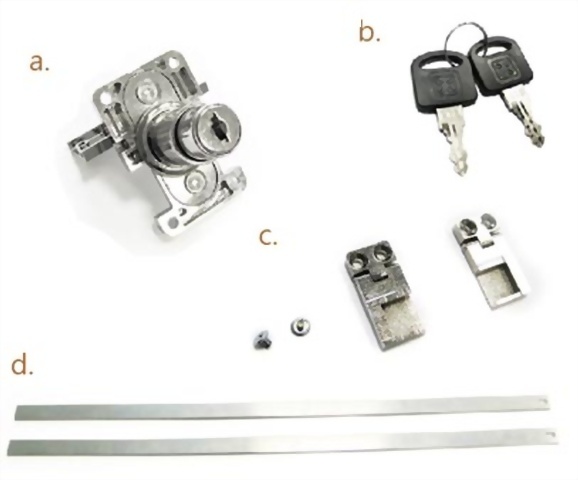

Accessories for sliding door lock (standard offer) |
||
|
Part no. |
Part name |
Q’ty |
|
709A-22 |
Lock body |
1 pc |
|
A0010L600 |
Aluminum bar with 600mm length |
2 pcs |
|
A709-L |
Saddle for left side |
1 pc |
|
A709-R |
Saddle for right side |
1 pc |
Standard length of aluminum profile is 600mm, you can cut the different length for cabinet.
|
Length of aluminum profile |
Width of inside cabinet |
|
358mm |
800mm |
|
458mm |
1,000mm |
|
558mm |
1,200mm |
- Built for wardrobes: Designed specifically for triple sliding wardrobe doors
- Door thickness compatibility: Fits sliding panels with thickness ranging from 18 mm to 20 mm
- Cylinder diameter: Features a 19 mm cylinder for locking mechanism
- Construction: Crafted from durable zinc alloy for strength and wear resistance
- 1 × lock body (709A-22)
- 2 × aluminum bars, each 600 mm (A0010L600)
- 1 × left saddle (A709-L)
- 1 × right saddle (A709-R)
- Door panels are 18–20 mm thick
- A robust, metal-built lock is preferred
- Custom fitting of the lock’s aluminum bars is needed to accommodate cabinet widths ranging from approximately 358 mm to 558 mm
