key-operated overide possible dial cam lock built for lockers, cabinets, and storage units. Made from steel, it offers dependable, mechanical security for institutional and commercial environments.
Available for Steel cabinet and Wooden cabinet
Good for both inset and overlay cabinet door
Master key system is based on special request
Spare key for additional purchase
Smaller size with most competitive price

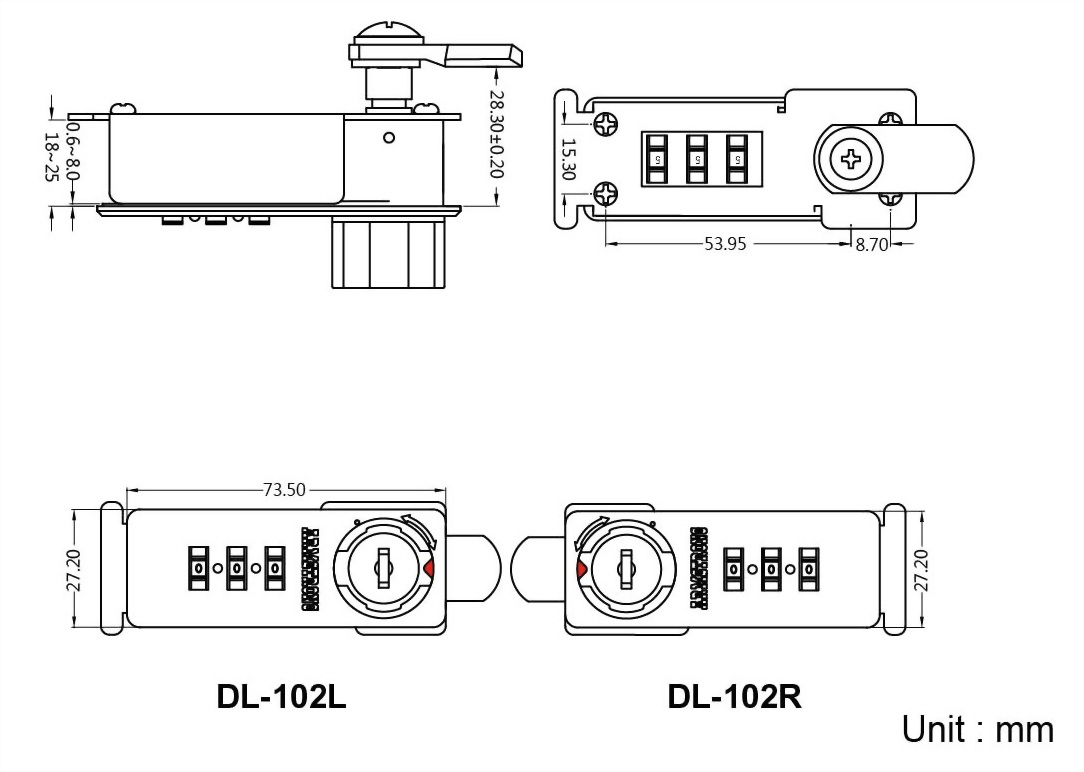

3 Dial Combination Lock - Cam Lock Type
ITEM NO.: DL-102
● For Steel panel 0.6mm ~8mm and Wooden panel 18mm ~ 25mm ● Right or Left model available for your selection ● With open/lock indicator window
POSITION
ORDER NO.
FINISH
LEFT
RIGHT
HORIZONTAL
DL-BK102L
DL-BK102R
BLACK ONLY
Material: BLACK ABS CASE AND ZINC ALLOY CYLINDER
Key profile: 4F
Accessories:
1 Straight cam (A0046DL-35mm) 1 Back plate 1 Set of Screws 1 Striking plate (A0007(DS-02-18N))
Steel Construction – Heavy-duty body for daily use
Key-Operated Mechanism – Simple and secure locking
Compact Form – Fits standard locker doors and drawers
Reversible Cam – Left- or right-hand installation
Corrosion-Resistant Finish – Long-lasting performance in high-traffic areas
School and gym lockers
Workplace storage cabinets
Employee lockers
Medical and lab storage
Utility boxes
For glass sliding doors ( Combination lock for display cases - contact for more detail)
