High Quality 4 Dial Combination Lock DL-003L-24 DL-003R-24
Keyless cabinet security
Left/right dial lock 18–24 mm
4‑dial cabinet lock
Left/right dial lock 18–24 mm
4‑dial cabinet lock
Model :
DL-003
Price : $20.96
- High quality 4 dial lock with metal housing.
- Matte Chrome Color.
- For thickness from 18mm to 24mm.
- Left or right model are available for your selection.
- Easy to set up and install.
- No battery required.
- Spare keys are also provided for emergency.
- Master key is available to offer.
COMBINATION LOCK FOR LOCKERS
- Left or right model available for your selection
- Horizontal model only

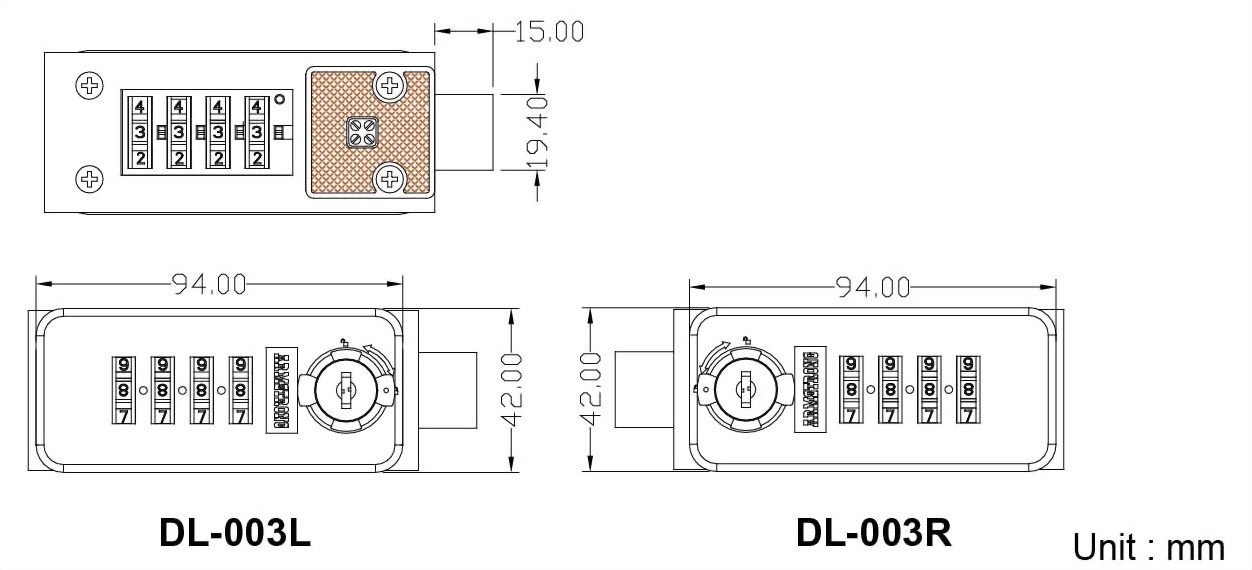

ITEM No. : DL-003
| POSITION |
THICKNESS |
ORDER NO. |
FINISH |
|
| LEFT | RIGHT | |||
|
HORIZONTAL |
18~24mm |
DL-MC003L-24 |
DL-MC003R-24 |
MATTE CHROME |
MATERIAL：zinc and plastic
KEY PROFILE：4 F
ACCESSORIES :
- 1 Striking plate ( A0007(DS-02-18))
- 1 Set of screw
| PACKING INFORMATION |
| BOX | CARTON | N.W.(kgs) | G.W.(kgs) | Meas.(inches) |
| 1 | 64 | 16 | 18.00 | 15.5x10.75x9.25 |
- Robust 4‑dial mechanism supports thousands of combinations—ideal for secure cabinets
- High-quality metal housing with a matte chrome finish ensures strength and durability
- Supports door thickness 18–24 mm, available in both left-handed (DL‑003L‑24) and right‑handed (DL‑003R‑24) versions
- Emergency key override (2 keys included) for unlocking if combination is forgotten
- Easy installation on steel or wood inset/overlay doors—no batteries or electronics required
Office drawers , display drawer and more.
