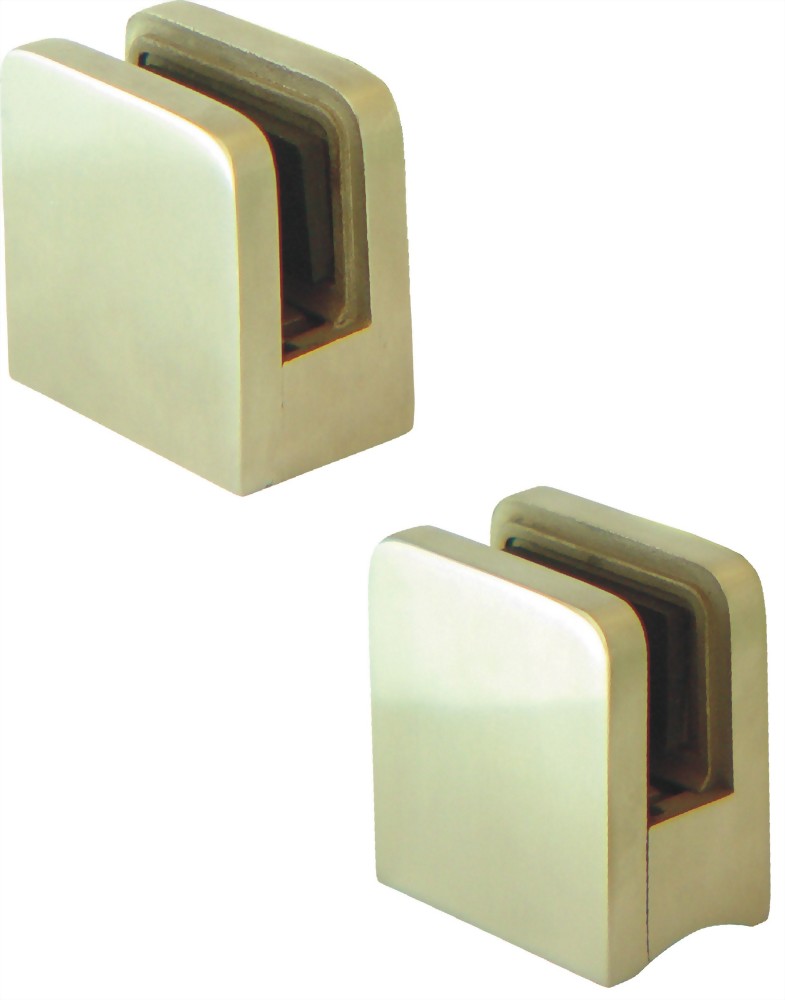

Glass Clamp Square Type 3510-01
GLASS CLAMP SQUARE TYPE 3510-01, For glass thickness 6~8mm.
Model :
3510-01
For glass thickness 6~8mm
Size: Hight 45mm , Width:45mm
FOR Flat Surface 3510-01F
FOR Tube, dia.2”3510-01T(R24)
Material: #304 Stainless Steel
Finish: Satin Stainless Steel /Polish Stainless Steel
Feature
1. Excellent durability.
2. Modern style & exquisite quality.
3. Application: Handrail staircase of the shopping mall, balcony or deck and so on.
4. Easy to clean, and will not get rust.
5. Suitable for different size of glass thickness.
Packing
48pcs/carton; G.W.:14.4 KG
GLASS CLAMP SERIES － SQUARE TYPE
ITEM NO.:
3510-01F For Flat Surface
3510-01T(R19) For Tube dia. 1.5"
3510-01T(R24) For Tube dia. 2"
＊For glass thickness 6~8mm
| ORDER NO. | ORDER NO. | FINISH |
| SSS3510-01F | SSS3510-01T(R19)/(R24) | STAIN STAINLESS STEEL |
| PSS3510-01F | PSS3510-(R19)/(R24) | POLISH STAINLESS STEEL |
MATERIAL: #304 stainless steel (#316 stainless steel based on special request)
UNIT: Piece
ACCESSORIES: Rubber pad T: 2mm x 2pcs, 1mm x 2pcs
| PACKING INFORMAITION | ||||
| BOX | CARTON | N.W.(kgs) | G.W.(kgs) | Meas.(inches) |
| 1 | 48 | 13.40 | 14.40 | 18.50x7.25x9 |
