Central Lock Frontal Mounted System 666-S600
Armstrong Central Lock 666‑S600
Frontal‑mounted central lock system
Drawer lock for 3 drawers
Multi‑drawer central lock system
Frontal‑mounted central lock system
Drawer lock for 3 drawers
Multi‑drawer central lock system
Model :
666-S600
Price : $6.96

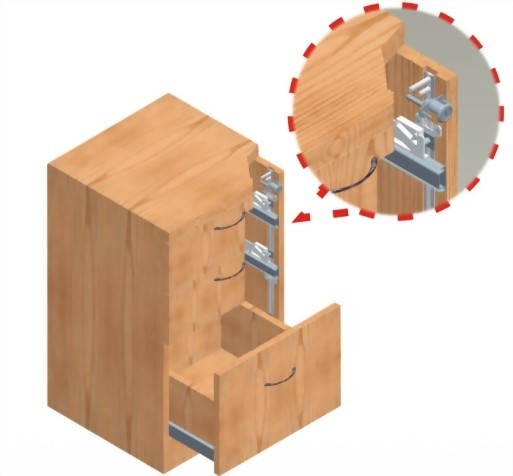

A front-mounted central locking system for multi-drawer installations. It combines a zinc alloy lock body with a choice of 600 mm or 1200 mm aluminum linkage bars for 2 to 4 drawers. The set includes keys, mounting peg, and guide—everything needed for smooth installation.
High security central lock for 3 or 4 drawers.
- Available for 2~4 drawers, depends on different demand
- Material: Zinc Alloy
- Lock Finish: Nickel
- Diameter: 16.5MM
- Length: 20MM
CONTAINS

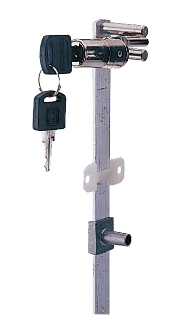

1. N666 LOCK BODY with 2 keys (cylinder: dia 16.5mm x L: 20mm)2. A A0010L600 (S-BAR 600MM) or A0010L1200 ( S-BAR 1200MM) – 1 PC*S-bar is under non-anodized aluminum*3. A0011P17 PEG 17mm W/SCREW4. A0014 PLASTIC BAR GUIDE
Packing
Lock body: 250 pcs/carton; G.W.:14.40 KGS
S-bar & accessory: 100 pcs/carton; G.W.: 12.70KGS
- Material: Zinc Alloy
- Lock Finish: Nickel
- Diameter: 16.5MM
- Length: 20MM
- N666 LOCK BODY with 2 keys (cylinder: dia 16.5mm x L: 20mm)
- A A0010L600 (S-BAR 600MM) or A0010L1200 ( S-BAR 1200MM) – 1 PC
- *S-bar is under non-anodized aluminum*
- A0011P17 PEG 17mm W/SCREW
- A0014 PLASTIC BAR GUIDE
- Single key operation locks/unlocks multiple drawers at once.
- Frontal-mount design ideal for retrofits or clean aesthetics.
- keyed‑alike or keyed-different
- Packaged with hardware for installation—no extra parts needed.
- Office filing cabinetswhere centralized locking is needed.
- Cabinetry or modular furniturerequiring a clean frontal mount installation.
- OEM furniture production, offering standardized, bulk-ready lock sets.
- Security-focused use inmedical,banking, orinstitutionalenvironments.
