Auto Return to Zero Function-4 dial Combination Lock DL-202
PATENT NO. ZL 201510662149.0
High quality - 4 dial combination lock for locker
With scramble to zero function when the lock is on open and lock position and top security system.
Easy and simple to operate and install, suitable for steel or wooden cabinet between thickness from 0.80-3mm &16mm~22mm.
Special dimension based on special request
Master system is available and spare keys is for optional purchase
In case of lost the password, we can use spare key to open the lock and find the correct password as well.
Lock with color indication so easy to see locked or open.
Auto Return to Zero Combination Lock
Feature :
● Auto-return to zero function the dials reset directly when open and close.
● Thousand of codes are workable-easy to set up and freely programmed.
● Key open for emergency use.
● Easy to find out your digit code.
● Thousand of codes are workable-easy to set up and freely programmed.
● Key open for emergency use.
● Easy to find out your digit code.

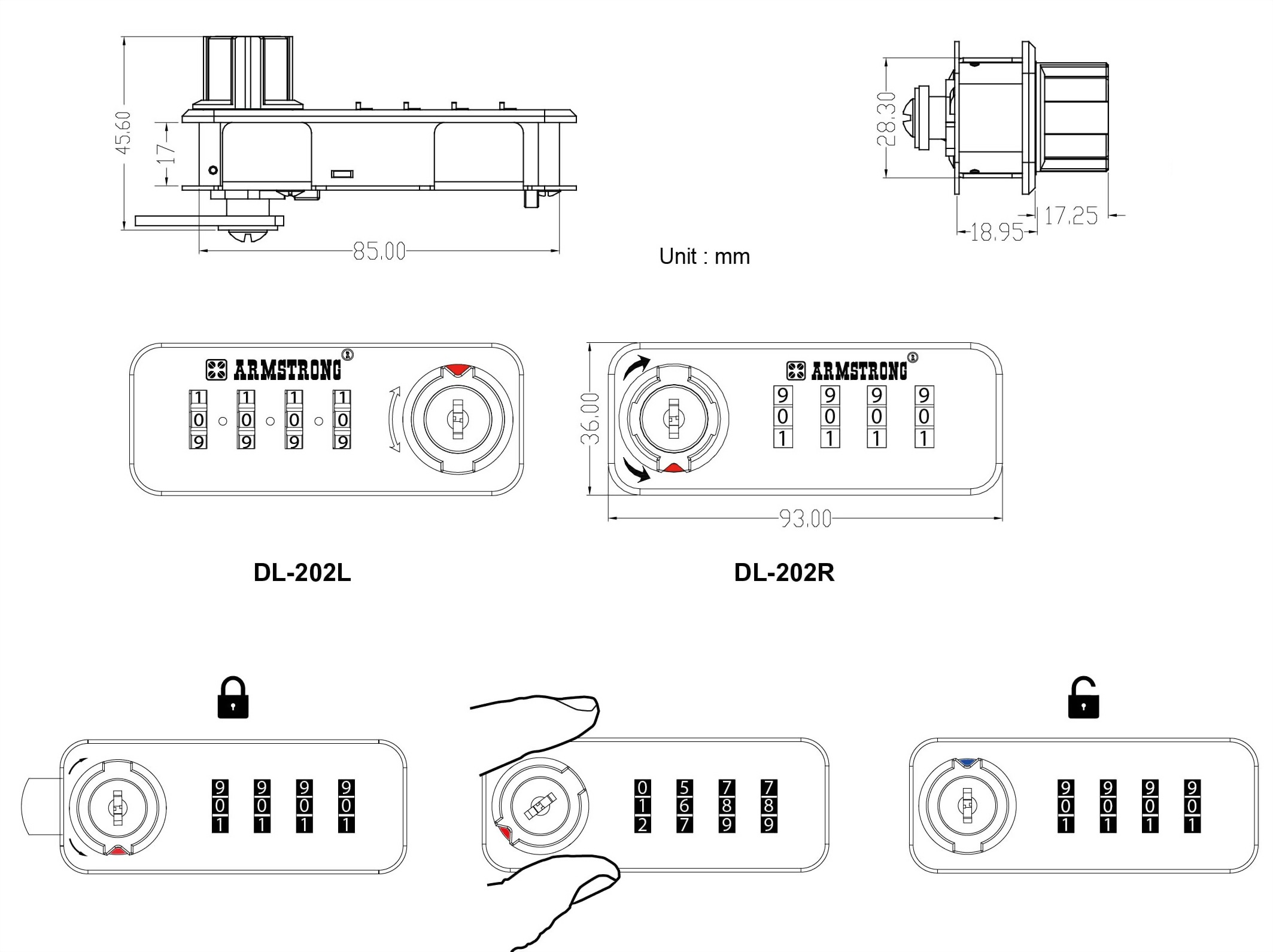

ITEM NO.: DL-202
● For steel panel 1mm ~ 4mm and wooden panel 17~22mm
● Left / Right hand and Vertical / Horizontal position for your selection
● Left / Right hand and Vertical / Horizontal position for your selection
|
POSITION |
ORDER NO. |
FINISH |
|
|
Left |
Right |
||
|
HORIZONTAL |
DL-MC202L |
DL-MC202R |
MATTE CHROME |
|
VERTICIAL |
DL-MC202VL |
DL-MC202VR |
|
Material: ZINC ALLOY
Key profile: 4F
Accessories:
1 Straight cam 40mm (A0046-40mm)
